Dennis Severin's 6803 ProBug System

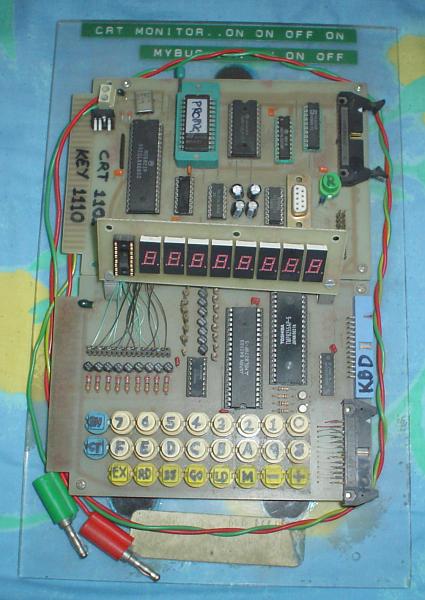

[Really bad picture of Dennis Severin's 6803 ProBug System]

Specifications

MANUFACTURER  Dennis Severin
MODEL  6803 ProBug System
YEAR OF INTRODUCTION  1986
MAIN PROCESSOR  6803
BITS  8
CLOCK SPEED  1.2672 MHz
FLOATING POINT UNIT  none
MEMORY MANAGEMENT UNIT  none
CO-PROCESSOR  none
RAM  2.12k
ROM  2k
OPERATING SYSTEM  Motorola ProBug Monitor
HONOURABLE MENTION  Dennis Severin

This is another example of me asking Dennis if I could borrow a development system and him saying that I could keep it, then giving me a bunch of documentation.

As far as I can tell, the machine was built from the memory map and circuit description to accomodate Motorola's ProBug monitor program for 6801 & 6803 processors. Basically, all ProBug required was the internal RAM at $0080-$00FF for the system, the ROM at $B800-$BFFF, and the CPU to be driven by a 5.068MHz crystal to set the correct baud rate on the internal serial port. The RAM for user programs is at $1000-$17FF. I have another ROM for the system which contains a hacked version Dennis created to increase the terminal interface speed to 9600 bps and to drive the hex keyboard and display.

For those who don't know, the 6803 is a 6800 with the ability to combine the two 8-bit accumulators to form a single 16-bit one. It also has 128 bytes of onboard RAM as well as inbuilt peripherals like timers, RS-232, parallel ports, etc. The 6801 is the same thing but with built-in ROM as well.

Below, I've included a brief manual on using the Motorola ProBug monitor and a dump of the ROM. The software is probably still copyrighted but I doubt Motorola/Freescale would care about such an old product.

ProBug Monitor manual
ProBug Monitor S19 hex file
