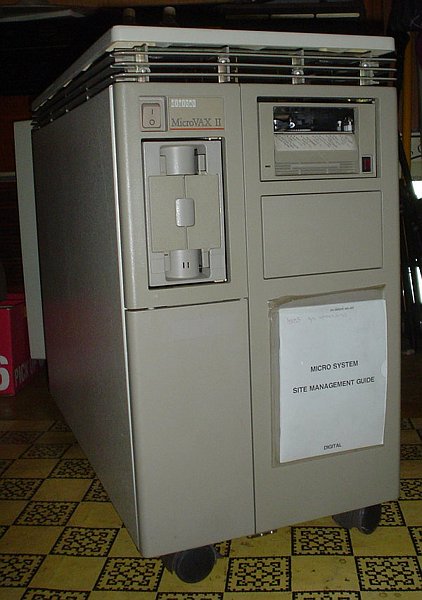

![[Really bad picture of the DEC MicroVAX II]](./img/microvax2.jpg)
| MANUFACTURER | Digital Equipment Corporation |
| MODEL | MicroVAX II |
| YEAR OF INTRODUCTION | 1985 |
| MAIN PROCESSOR | KA630-A (78032) |
| BITS | 32 |
| CLOCK SPEED | 5 MHz |
| FLOATING POINT UNIT | 78132 |
| MEMORY MANAGEMENT UNIT | integrated |
| CO-PROCESSOR | none |
| RAM | 16M |
| ROM | 64k |
| OPERATING SYSTEM | ? |
| HONOURABLE MENTION | Leon Martin |
Below is a list of the cards installed in it.
| A | B | C | D | |
| 1 | M7606-EF (KA630-A CPU) | |||
| 2 | M7609-AP (MS630-CA 8M RAM) | |||
| 3 | M7609-AF (MS630-CA 8M RAM) | |||
| 4 | M7516 (DELQA-M Ethernet) | (empty) | (empty) | |
| 5 | M3104 (DHV11-A 8-line Async Mux) | |||
| 6 | M9047 (Grant Continuity) | M7546 (TQK50-AA TK50 Tape Controller) | ||
| 7 | M7164 (KDA50 SDI disk adaptor - 1 of 2) | |||
| 8 | M7165 (KDA50 SDI disk adaptor - 2 of 2) | |||
| 9 | (empty) | (empty) | (empty) | (empty) |
| 10 | (empty) | (empty) | (empty) | (empty) |
| 11 | (empty) | (empty) | (empty) | (empty) |
| 12 | (empty) | (empty) | (empty) | (empty) |
